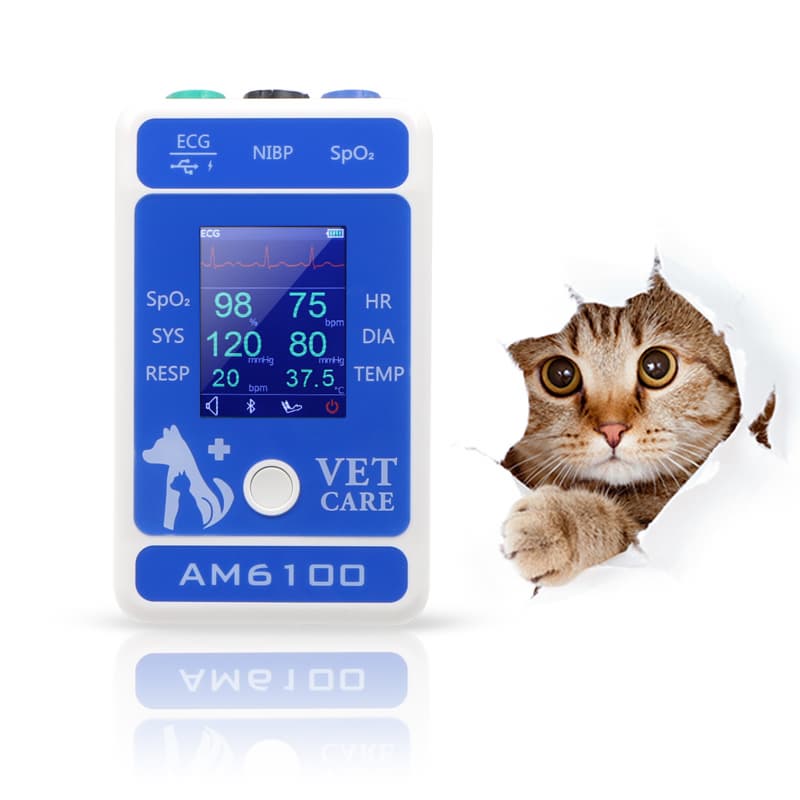

AM6100 bluetooth Vet patient monitor 2.4 inch color TFT LCD


Negotiable Min Order Quantity Unit

Required Quantity
Place of Origin
China
Brand name
BERRY
Payment Terms
MoneyGram,Others,T/T,Western Union
Production method
Negotiable
Shipping / Lead Time
Negotiable / Negotiable
Keyword
patient monitor for vet, vet blood pressur monitor, vet vital signs monitor, vet patient monitor
Category
Veterinary Instrument , Veterinary Medicine
tK Meet
tK Meet

Apply a video call to the Supplier

SEND TO SUPPLIER INQUIRY

SHANGHAI BERRY ELECTRONIC TECH CO., LTD.

Membership
BIZ
Country / Year Established
China China / 2003
Business type
Manufacturer
Verified Certificate

5

DUNS

ISO

Product name AM6100 bluetooth Vet patient monitor 2.4 inch color TFT LCD Certification -
Category Veterinary Instrument
Veterinary Medicine
Ingredients -
Keyword patient monitor for vet , vet blood pressur monitor , vet vital signs monitor , vet patient monitor Unit Size 85.0 * 37.0 * 145.0 mm
Brand name BERRY Unit Weigh 240 g
origin China Stock -
Supply type - HS code -

Product Information

Product Description
AM6100 is 6 vital sign veterinary monitor, for cat and dogs like.

Monitoring 6 vital signs: spo2, PR, NIBP, ECG, Resp, Temp.
Free App can be download at google play for Android pad and android phone, named: Pet Monitor.
Support Bluetooth BLE 4.0 & 3.0, And the data is transmit from device to App via Bluetooth/serial port. Can active the device via physical button or on App.
Small, lightweight, it is simple to operate and easy to carry.
Rechargeable Lithium-ion Battery support continuously working 12 hours.

Used at home and in hospitals, it can be freely combined with other medical devices, which can greatly improve the level and function of primary medical products and provide excellent platform for the improvement of pet treatment and management level.






Specification


SpO2
Detection scope: 35%-100%
Accuracy: ±2% 80%-100%
                   ±3% 70%-79%
Heart rate
Scope: 15bpm to 300bpm
Accuracy: ±1bpm

NIBP
Detection scope:
Systolic blood pressure: 4kPa-34kPa(30-255mmHg)
Diastolic pressure: 2kPa-29.3kPa(15-220mmHg)
Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)
Detection accuracy: Static pressure:±4mmHg
ECG
Waveform: Lead I
Band width 0.05Hz-100Hz(3dB) diagnose mode
1-40Hz monitor mode
0.1-25Hz operation mode
Resp
/
Temp
Type: Vascular/surface temperature
Scope: 20℃-50℃
Accuracy: ±0.2℃

 Bluetooth
Support both Bluetooth 3.0 and BLE 4.0
Built-in-Battery
3.7V,1800mAh lithium battery
Service life
3 years
Size
145mm*85mm*37mm
Weight
240g
Display
2.4 inch color TFT LCD
Key
Power on and perform functions





APP Quick Guide

PET MONITOR


1.Search "Pet Monitor" or "Berry Monitor for pad"app on the Google play. And Register an account
2.Launch SpO2/NIBP/ECG/TEMP
3. Display the results on the screen.
